Strol Lite Product Support
1/ QG
| Performance indictors | Detailed parameters | Detailed parameters sub |
|---|---|---|
| Product dimension (Folding) | 138.9x67.1x13.0 cm | 54.7x26.4x5.1 inch |
| Product dimension (Assembly) | 133.6 x67.1 x100.8 cm | 52.6 x 26.4 x 39.7 inch |
| Running Area | 43.2 x 108.0 cm | 17 x42.5 inch |
| Gross weight | 31 KG | 68.4 Lbs |
| Net weight | 26 KG | 57.3 Lbs |
| Maximum load | 120 KG | 265 Lbs |
| Minimum speed | 0.6 mph | / |
| Maximum speed | 7.6 mph | / |
| Rate voltage | 110-120V ~ | / |
| Peak horsepower | 2.5hp | / |
| Rated power | 0.75 hp | / |
| Suggested age | 14-60 years old | / |

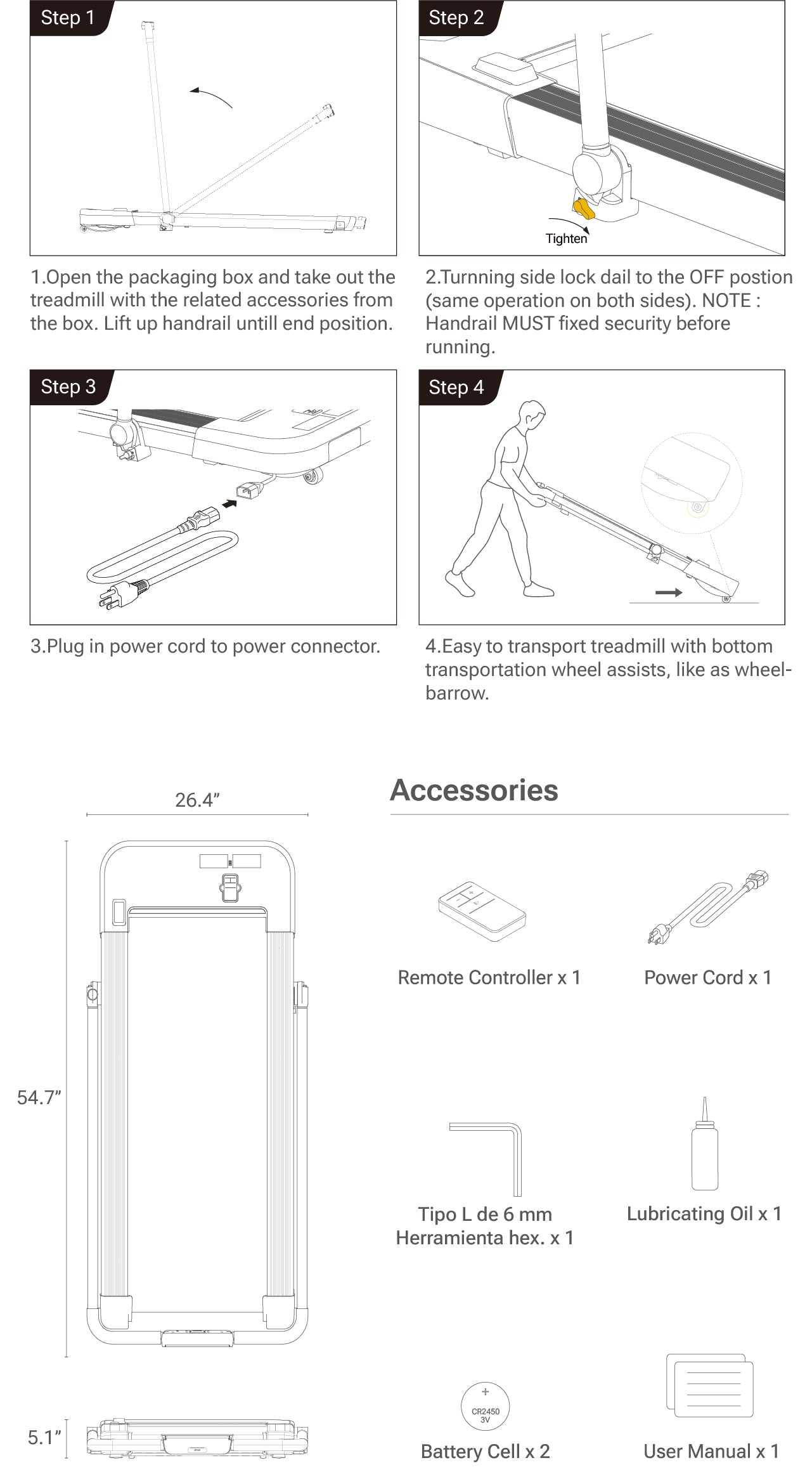

2 / How to video
Faqs
The screen displays E2/E7/E8
Please open the motor cover and check that the wiring control is properly installed
Remote control batteries drain fast
Please contact the customer service centre to exchange the remote control
Remote control does not work
Please re-pair the remote control with the treadmill. The steps are as follows: 1. Switch off the treadmill 2. Press the ‘Start’ and ‘+’ buttons on the remote control at the same time, and the indicator light of the remote control will flash. 3. Turn on the power switch, after the sound of drops, the code is successful.
The screen displays E06
Please open the motor cover and check if the carbon brush cover is detached. If it is detached, please contact the customer service centre to resend the carbon brush cover.
Didn't Power On
1. Check the lines connect correct 2. Check that the switch and meter are illuminated and that the motor is working or not
The screen displays E01/E02
Check whether the communication cable is loose (whether the pins are inserted crooked) or broken. Replace or insert tightly.
The screen displays E5/E6
1.Open the motor cover to check for dirt 2.Add some oil under the belt and runs 15 mins without people running on it.
The screen displays E10
1. Check if the connection cable between the electronic meter and the controller is poorly connected. 2.Check the power plug for loose connections
Treadmill has a loud noise
Please make sure that the sound comes out only when you are running. If yes, the noise is the sound of the feet touching the running board, which is normal. If the treadmill still makes a lot of noise when no one is running, please do the following: 1. Add some oil under the belt and runs 15 mins without people running on it. 2. Open the motor cover to see if there is any foreign matter involved in the motor.
Display does not appear
Replace the display
Home tripped while in use
1.Turn off powerful appliances in your home and use the treadmill to see if it trips 2.Replacement of the power switch
The acceleration/deceleration button does not work
1. Press the stop button or restart the treadmill to exit the program 2. Replace the keypad
Sudden shutdown
1.Check the power plug for loose connections 2.Replacement of lower controls
Lubricated,Lube light still on
1. Shaker release: When the unit is in standby, press and hold the shaker + key for 10 seconds to clear the refuelling prompt icon. 2. Instrument key release: With the machine in standby, press the plus key and the speed 6 button at the same time and hold for 10 seconds to release the refuelling prompt light. (Single armrest)
